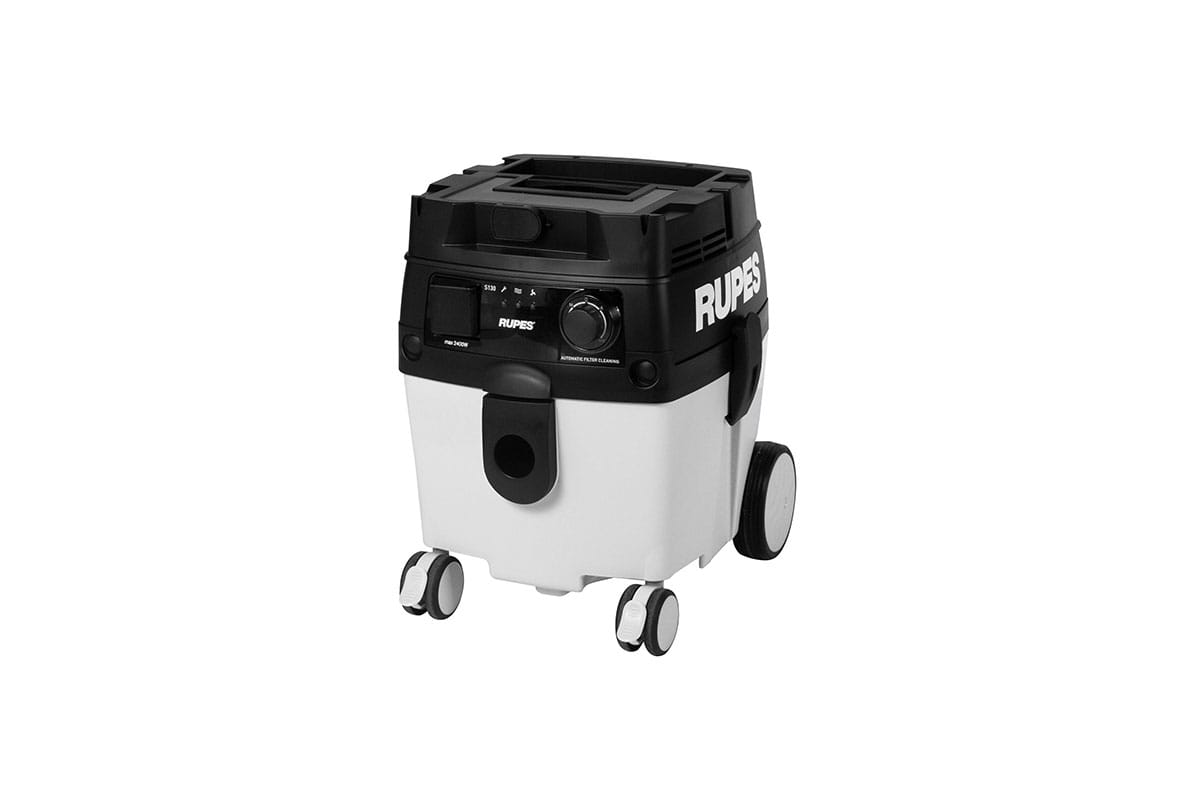

RUPES ‘S2 Series’ 30 Litre Compact Dust Extraction Class L Unit
$1,207.50 ex GST
Delivers powerful, consistent suction to handle the toughest cleanups.
Description
The Professional Rupes 30L Vacuum Extractor, their special structure ensures resistance and manageability during movement in all kind of workplaces. Their shape enables maximum expansion of the filter bag.
To ensure maximum extraction efficiency in all working conditions, the S2 version Eextractor has an automatic filter cleaning system. By means of a system of valves, the air flow passing through the filters is inverted in alternation every 30 seconds, thus ensuring efficient cleaning action. This innovative system allows the operator to continue working, without any interruption or reduction in the extraction process. All the vacuum cleaners belonging to the S2 Series are equipped with a double panel filter, reaching a total of 1sq. meter of filter surface area.
- Compatible with Systainer T-Loc Systems
- 1200W.
- Versatile and compact dust extraction unit with automatic filter cleaning.
- 5Kg Dust bag capacity.Â
- 30L Container volume.

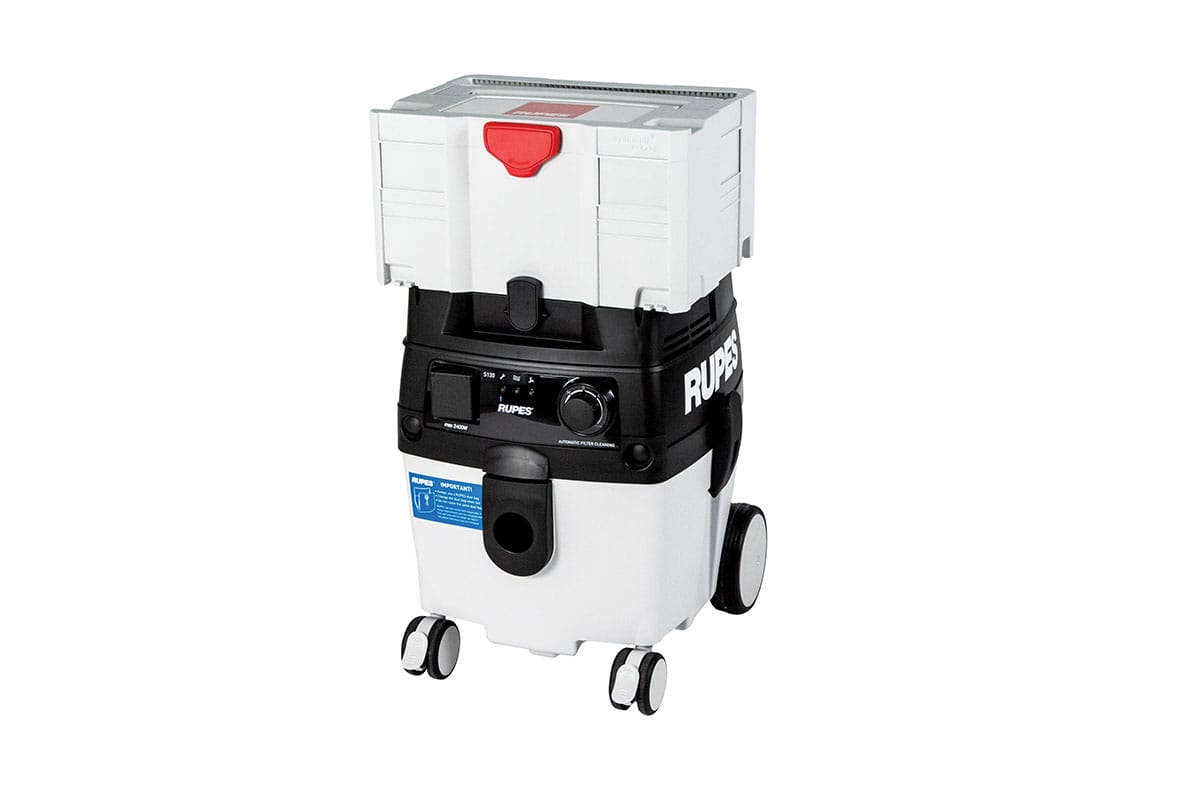

Compatible with Systainer T-Loc Systems
S2 Series vacuum cleaners are equipped with a fast connection for all the SYSTAINER T-LOC modular systems. Therefore, the system can be used as a real working station, where it is possible to store tools and related equipment.
With a 1200 watt motor the RUPES S230EL is an extremely versatile and compact dust extraction unit, providing dust extraction for an electric tool. The operator can choose between manual or automatic mode. The automatic mode can be selected by means of the special patented electronic board for electric tools with a maximum power of 2400 Watts.
Automatic Filter Cleaning
To ensure maximum extraction efficiency under all working conditions, the S2, version E extractors have an automatic filter cleaning system (RUPES patent). By means of a system of valves, the air flow passing through the filters is inverted in alternation every 30 seconds, thus ensuring efficient cleaning action. With this innovative system, the operator is able to continue working without any interruption of or reduction in the extraction process.
Supplied with a multipurpose swivel extraction attachment that makes it possible to use extraction hoses with diameters of 25, 29, 38 and 50 mm, making the extractor adaptable to any application. This model comes complete with a 4m hose and filter bag. Â
Extracted Dust Classification Rated ‘L ‘ – with a maximum tolerated exposure value > 1.0 mg/m3 (according to the EN60335-2-69/A2 standard). Suitable for fine dust, dust from mineral substances containing aluminium oxide and paint dust applications.
Features a convenient, multipurpose shelf for storing tools and attachments.
Technical data
 |  | S230EL |  |  |  |  |
Power (W) |  | 1×1200 |  |  |  |  |
Weight (kg) | Â | 10,5 | Â | Â | Â | Â |
Max power socket (W) |  | 1×2400 |  |  |  |  |
Vacuum (mmH²O) |  | 2000 |  |  |  |  |
Noise dB(A) | Â | 70 | Â | Â | Â | Â |
Tank capacity (l) | Â | 30 | Â | Â | Â | Â |
Air flow (l/min) | Â | 3400 | Â | Â | Â | Â |
Suitable for dust class | Â | L | Â | Â | Â | Â |
Filter surface (m²) |  | 1 |  |  |  |  |
Tools | Â | 1 | Â | Â | Â | Â |
Electric tools socket | Â | 1 | Â | Â | Â | Â |
Hose Ø selector |  | – |  |  |  |  |
Air quick coupling tools |  | – |  |  |  |  |
Working pressure (bar) |  | – |  |  |  |  |
Max compressed air capacity (l/min) |  | – |  |  |  |  |
Automatic filter cleaning |  | • |  |  |  |  |
ID Vacuum nozzle (mm) | Â | 50 | Â | Â | Â | Â |
Liquids sensor |  | • |  |  |  |  |
Filter | Â | Polyester | Â | Â | Â | Â |
With its combination of robust suction, ample capacity, and signature quality, the Rupes 30L Vacuum Extractor gives you the confidence to tackle even the most challenging cleaning tasks efficiently and effectively.
